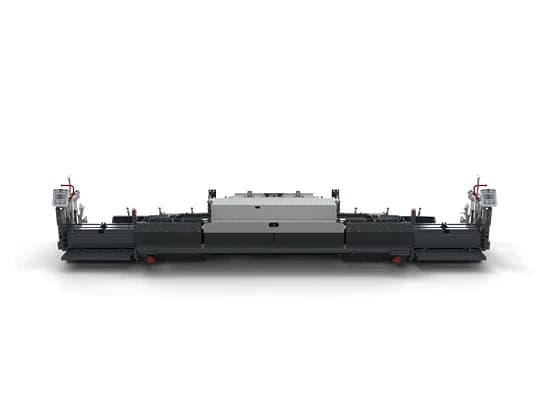

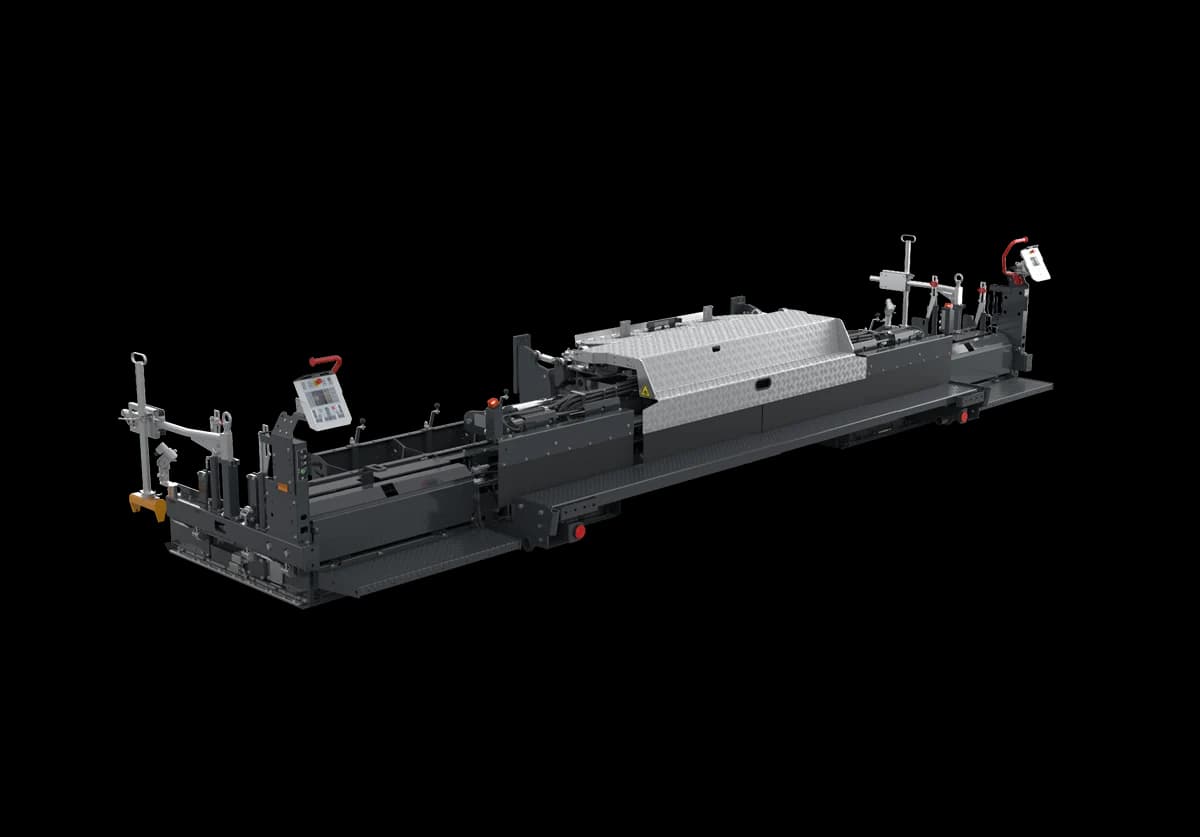

VDT-V 79
Variomatic High Compaction Screed with Double Tamper Technology and Additional Articulation
适用于: ABG 8820 | ABG 7820 | ABG 6820
2.5 m
9 m
2 Tampers
振动
Double Tamper Power. Special Profiles
Screed features
Click the points on the screed to see what each feature does.

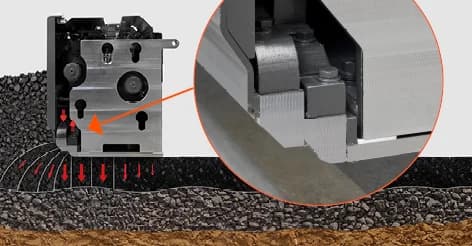

Double Tamper Power
技术规格
标准配置
Electrical Screed Heating
Manual Height Adjustment of the Screed Extensions
Quick Coupling System for Screed Extensions
Hydraulic Crown Profile Adjustment
Manual End Gates
Mechanical Tamper Stroke Adjustment (0/3/6/10 mm)
Additional Articulation for Screed Extensions (+-10%)
选装配置
Integrated Screed Width Measurement with Display in the MCU
Integrated Crown Profile Sensor with Display in the SCU
Crown Profile Adjustment via the SCU
Hydraulic Height Adjustment of Screed Extensions
Additional Storage Boxes for End Gates
Foldable End Gates
Handset Crown Control
Basic Screed Reduction Plates - 0,25 m per side
Paving Widths
| VDT-V 79 | - | - | |
|---|---|---|---|
| Basic width | 2.5 m | - | - |
| Hydraulic Adjusting range | 2.5 - 5.0 m | - | - |
| Max. paving width | 9 m | - | - |
| Min. paving width with reduction kit | 2 m | - | - |
| Available screed extension sizes | 0.75, 1.25 m | - | - |
| Depth of base plate | 350 mm | - | - |
Profile Adjustments
Compaction Systems
Heating System
Weights
Screed Configurator App
This tool helps you plan your paver screed configurations and assists technicians with on-site screed assembly. Follow the simple 4-step process to select your paver, choose a screed, configure the paving width, and generate a complete parts list with assembly instructions.
